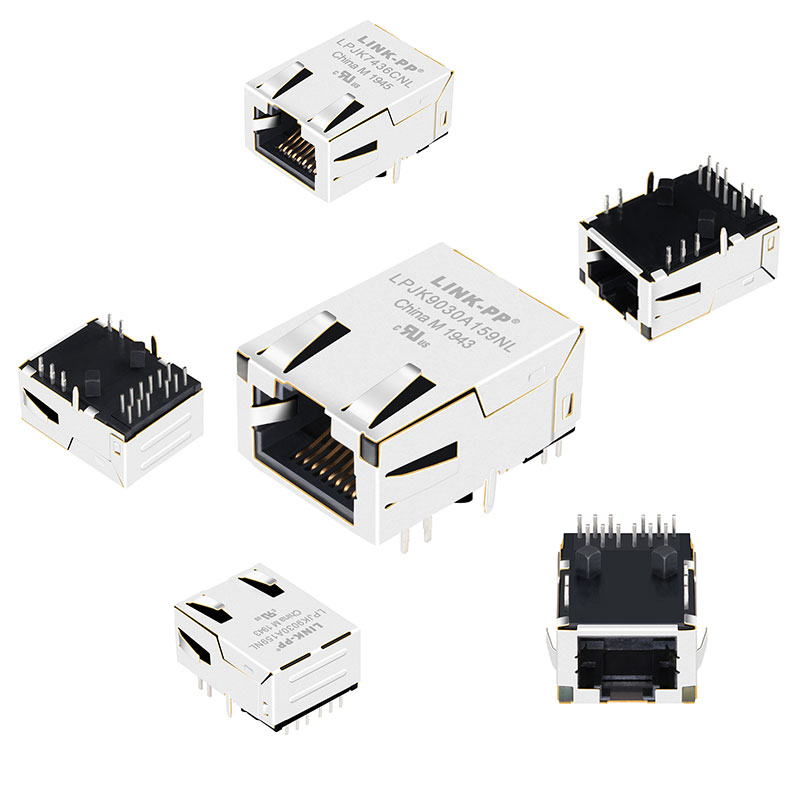

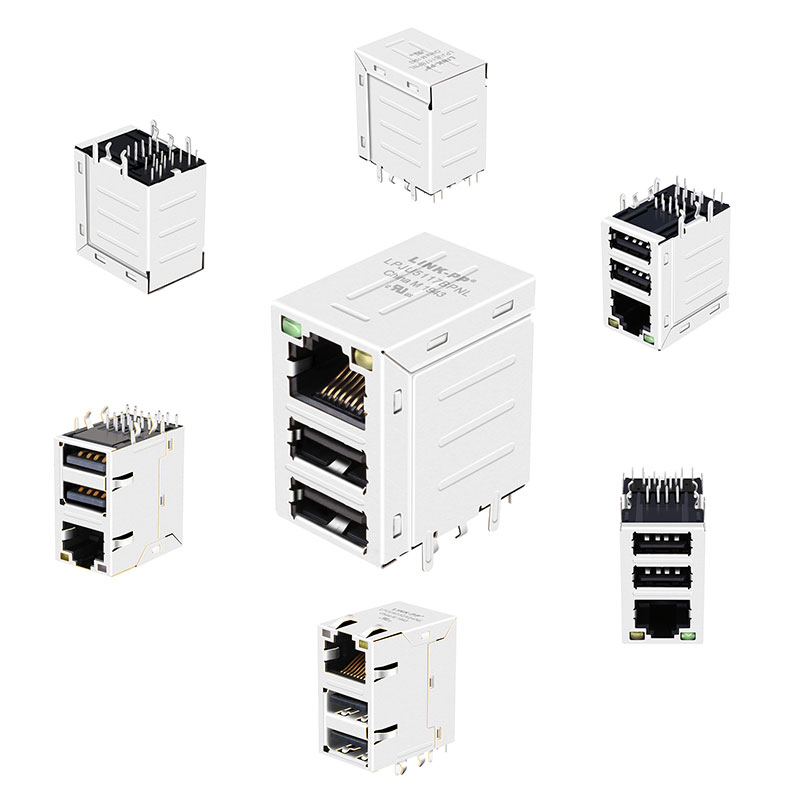

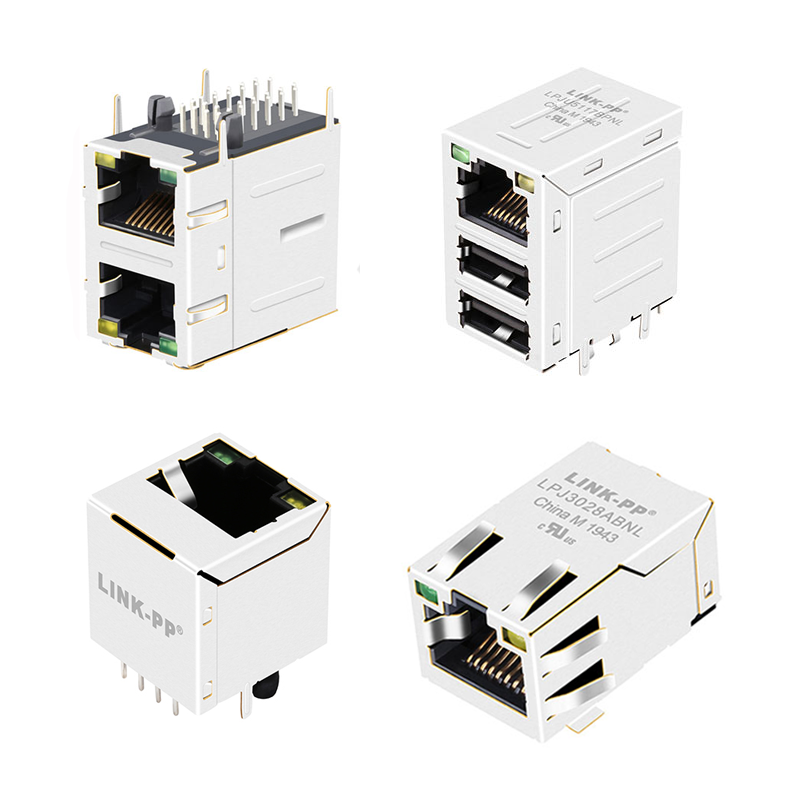

Tab Down Rj45 Magnetic Power Socket 8 Pin PCB Modular Jack Cat 6 Rj45 Female Connector With USB
Products Description
| Item | RJ45 Female Connector |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Poe/Non Poe) |

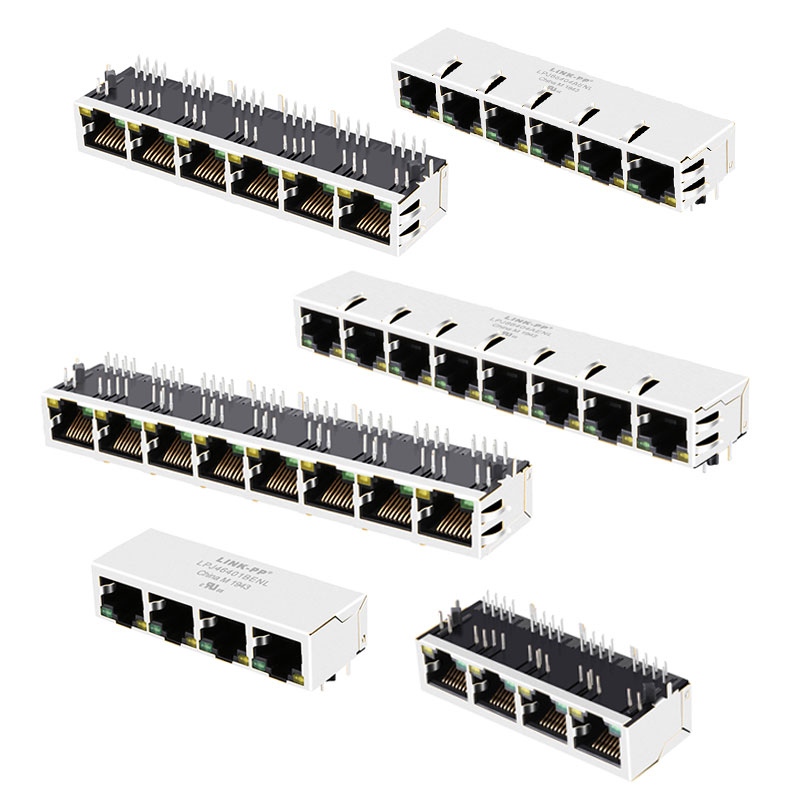

| Number of Ports | Single Port, 1xN Port, 2xN Port |
| Speed | 100/1000/2.5G/5G/10G Base-T |
| Latch | Down/Up |
| Cores per Port | 4/6/8/10/12 |
| Orientation | 90° / 180° |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without / With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Manufacturing Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. Our facilities own advanced manufacturing and testing equipment imported from abroad. With a workforce of around 2000 staff and a monthly capacity of 3000K, we ensure rapid delivery and professional technical support.
Main Products include 10/100/1000M LAN pulse transformers, RJ45 connectors with integrated magnetics, T1/E1/T3/DS3 interface transformers, and SFP modules. These components are widely utilized in HUBs, PC cards, switches, routers, IP phones, and xDSL modems across more than 30 countries. Our engineering team is dedicated to developing optimal solutions for unique customer requirements.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the requester.
What is your standard delivery time?
Items in stock are ready to ship immediately; for mass production, the lead time is generally between 15-30 days.
What after-sales service do you provide?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM requirements. Please contact our team for a detailed technical discussion.
What is your core advantage in this industry?
With over 19 years of production experience, we have established long-term partnerships with major global technology leaders.
