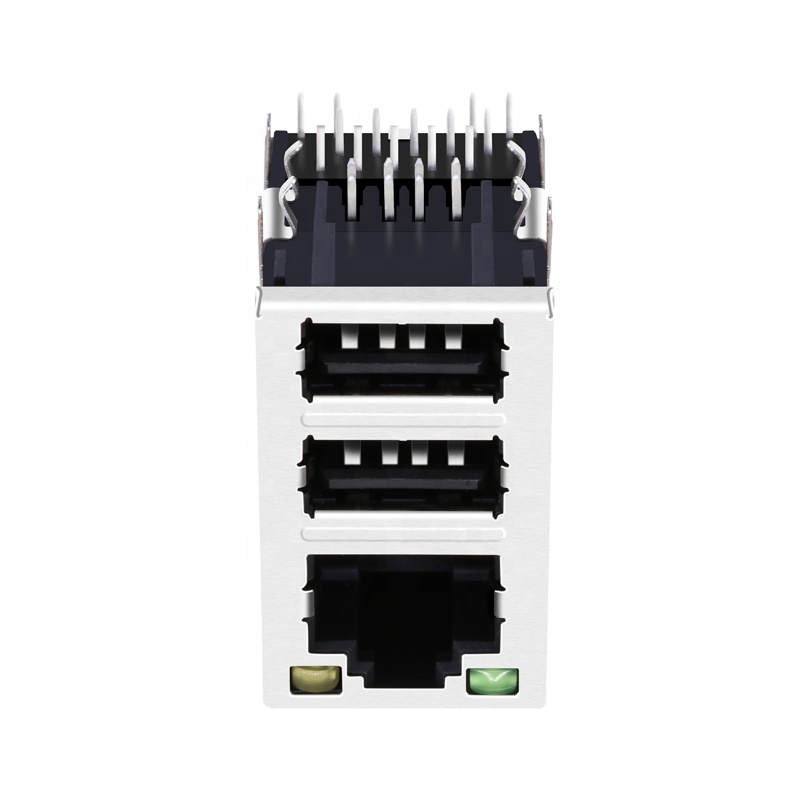

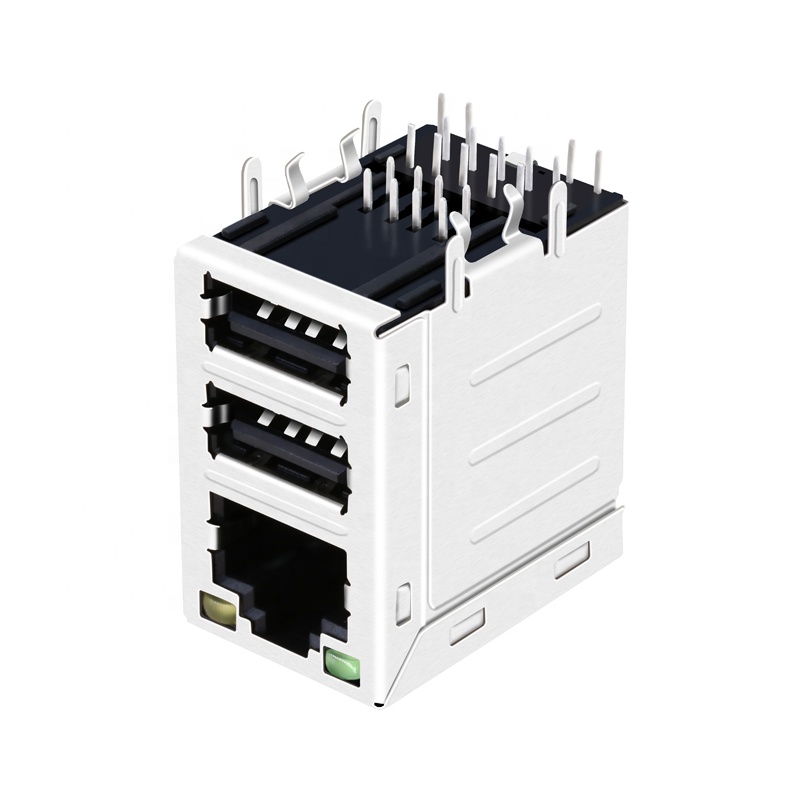

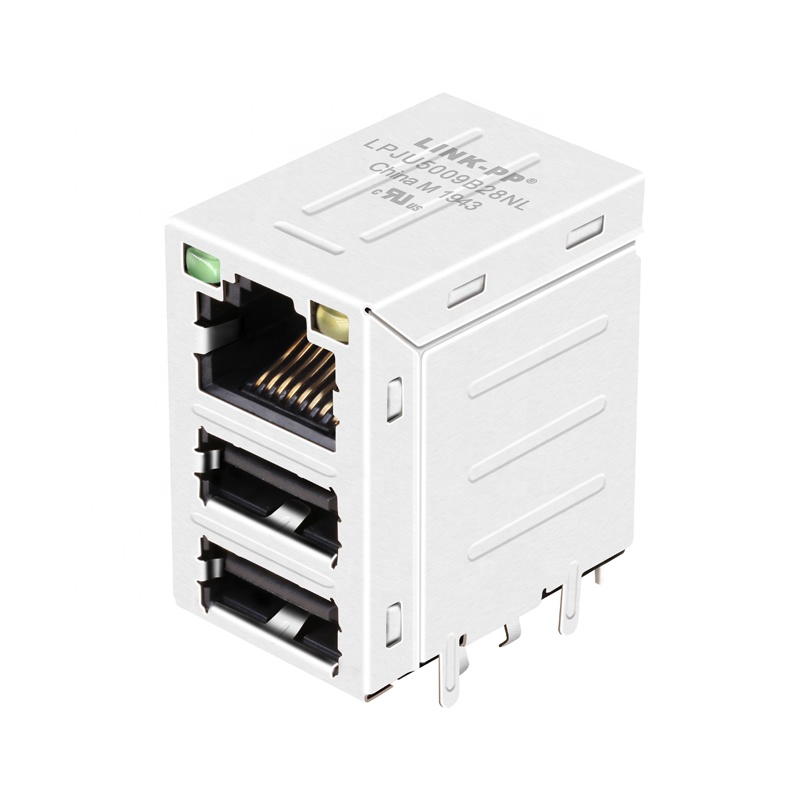

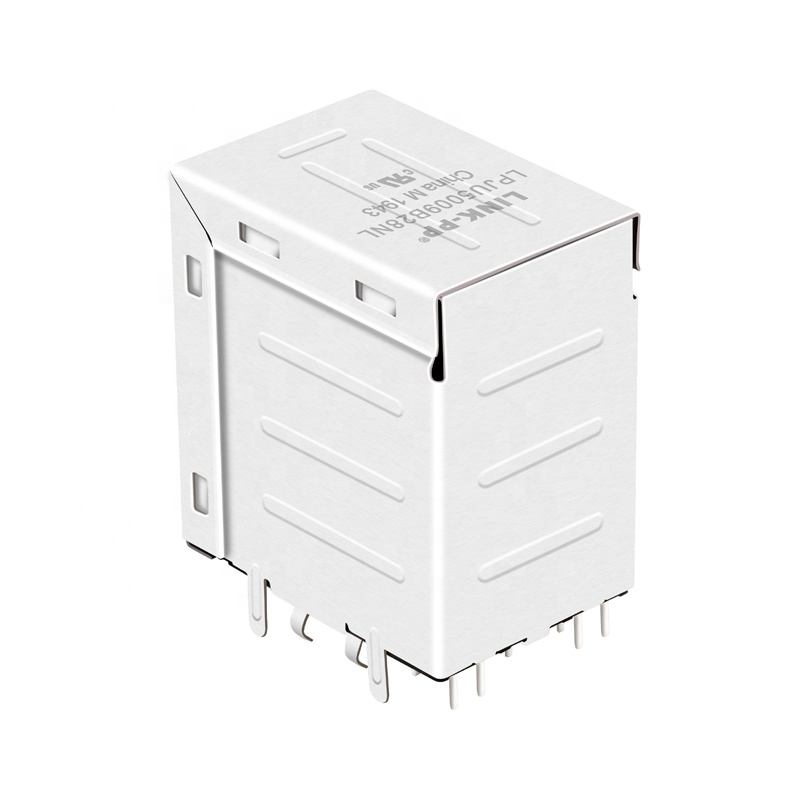

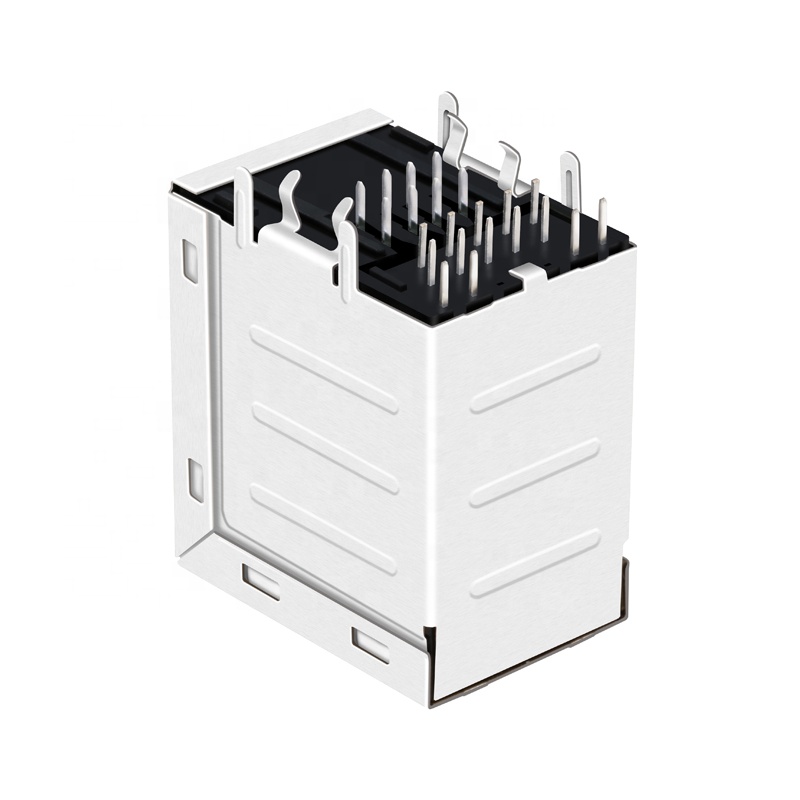

| Item | RJ45 Female Connector |
| Part Number | LPJU5009B28NL / C893-1AX1-E1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | Single Port With Dual USB |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a large dedicated staff and abundant productive capacity of 3000K per month, enabling delivery within a short time.
We provide professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported to more than 30 countries and regions globally, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for unique requirements. We trust that our strength in the field and our faith in pursuing excellence will foster long-term partnerships.
