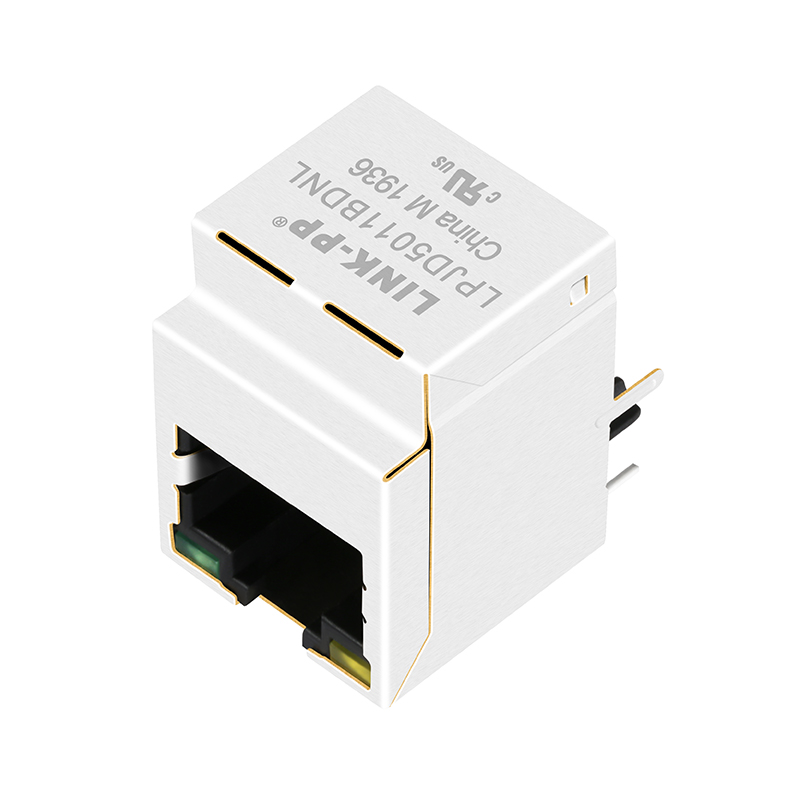

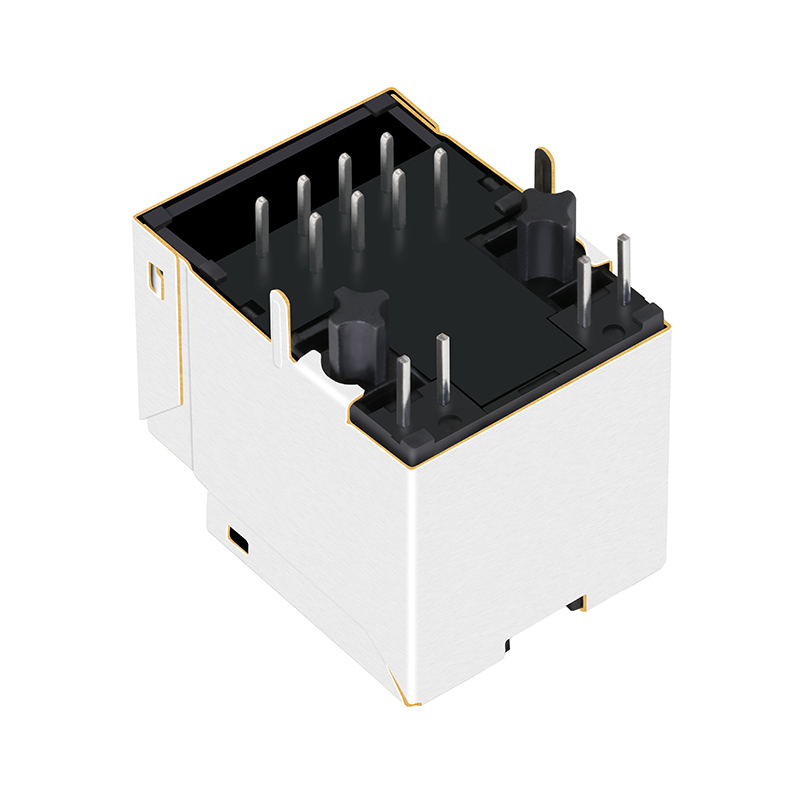

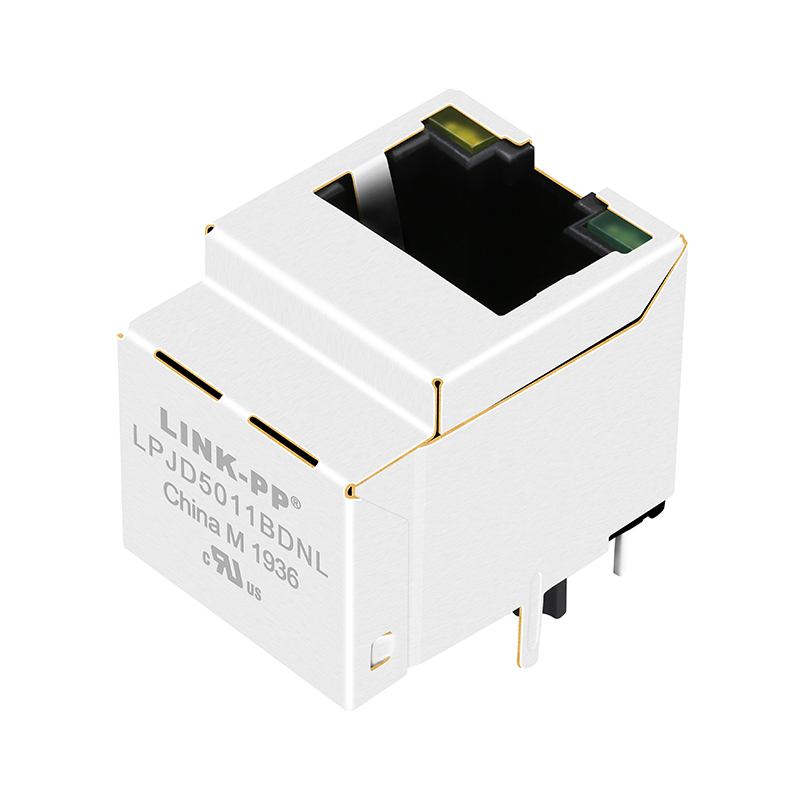

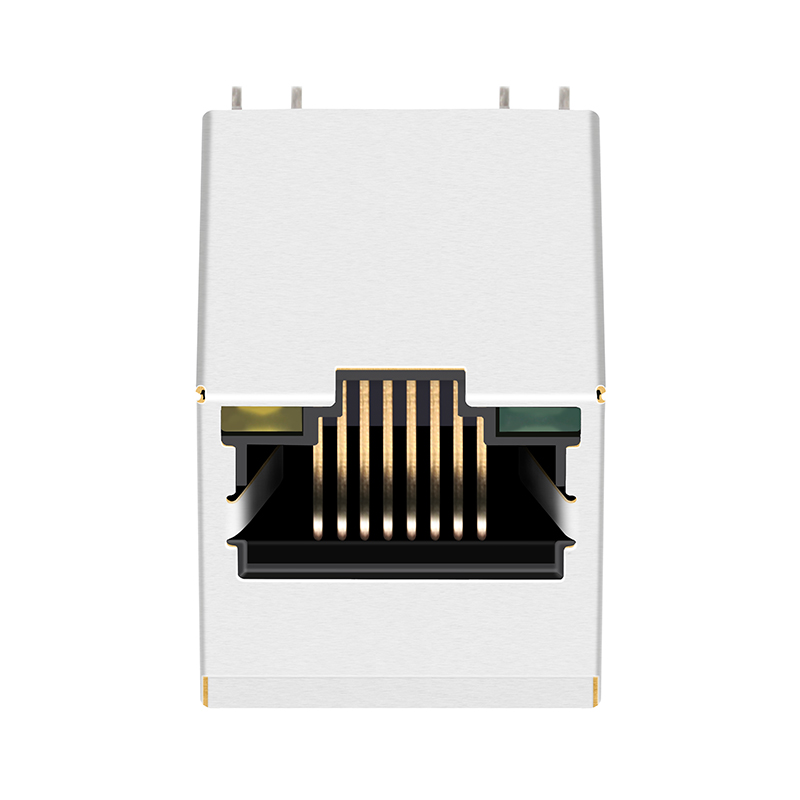

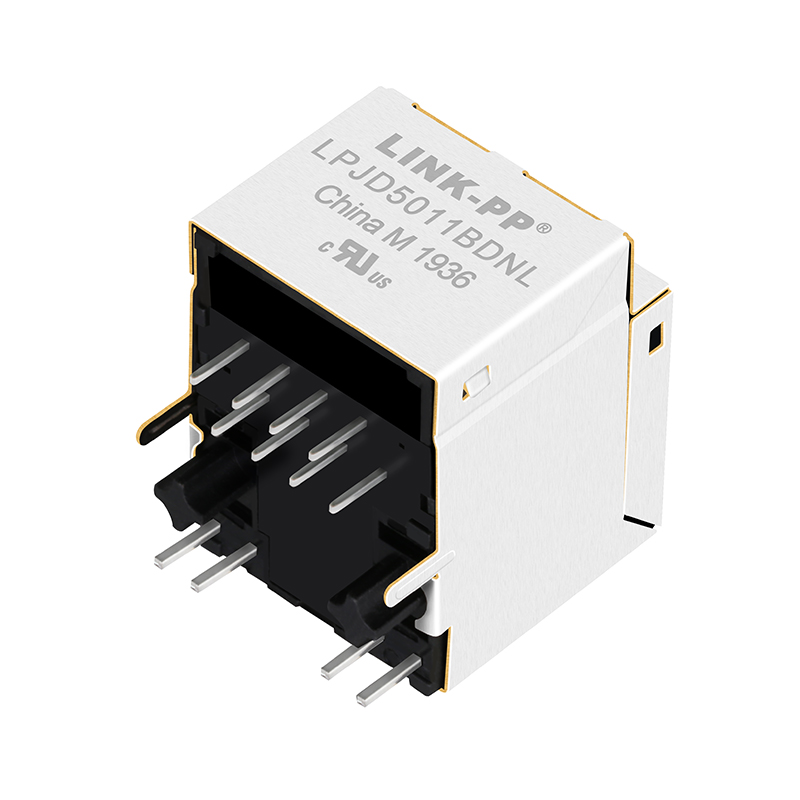

| Item | RJ45 Female Connector |
| Part Status | Active |
| Part Number | LPJD5011BDNL |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Cores per Port | 4 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without |
| LED Option | With |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products alongside specialized custom capabilities.
As a global supplier of magnetic telecom and networking components, we serve OEMs, contract manufacturers, and CEMs across more than 200 countries. By maintaining multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer technology.
