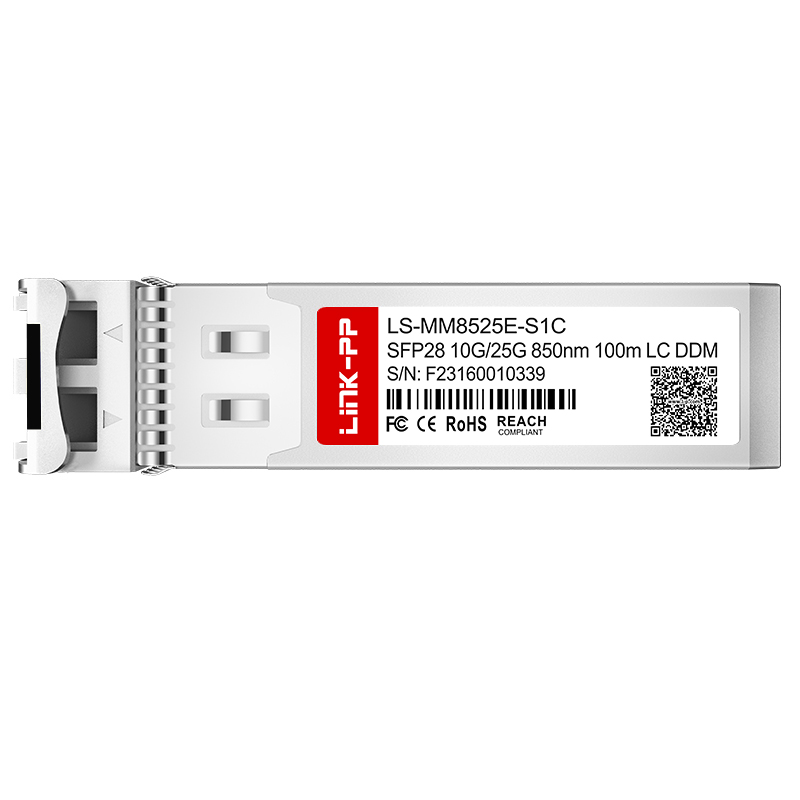

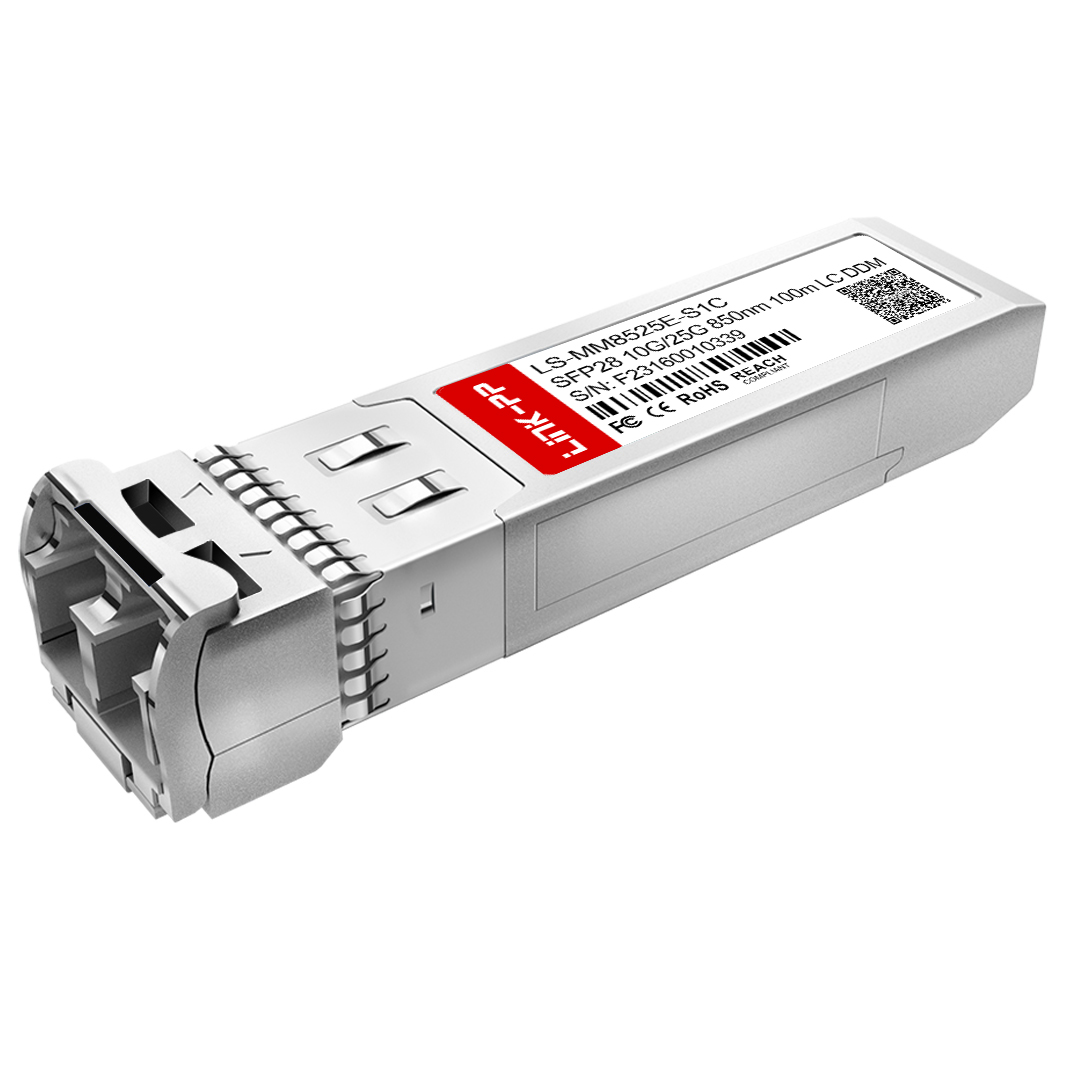

Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
| Item | 25G SFP28 Transceiver |
| Part No. | LS-MM8525E-S1C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 10G/25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 100m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -6.4~2.4dBm |
| Receiver Sensitivity | <-6dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1.2W |
| Extinction Ratio | 2dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G have been developed, providing high-quality interconnection solutions.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products for global communication network constructers.
