Dynafiber
Dynafiber

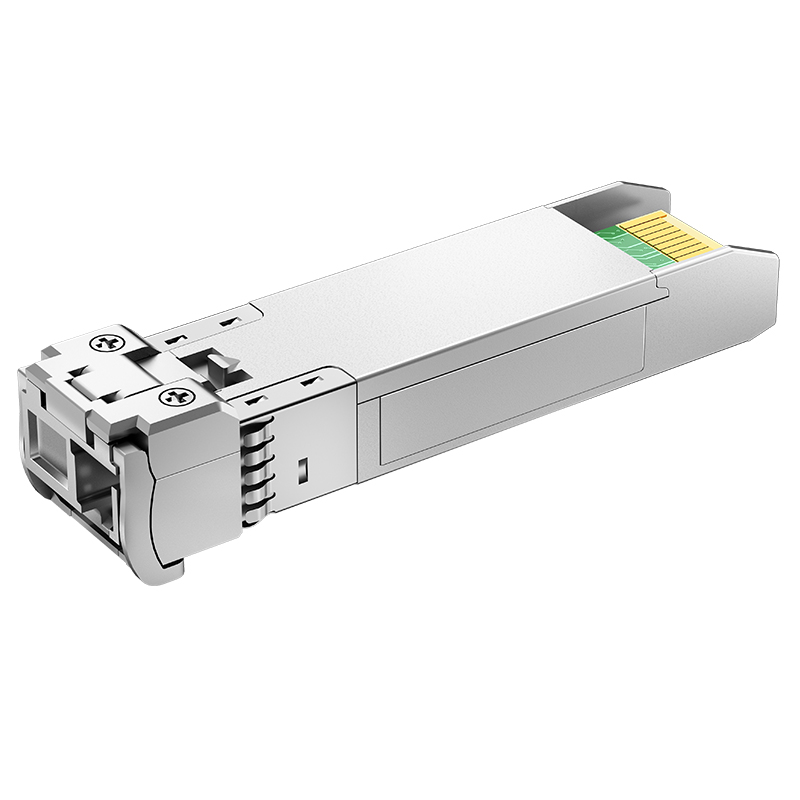

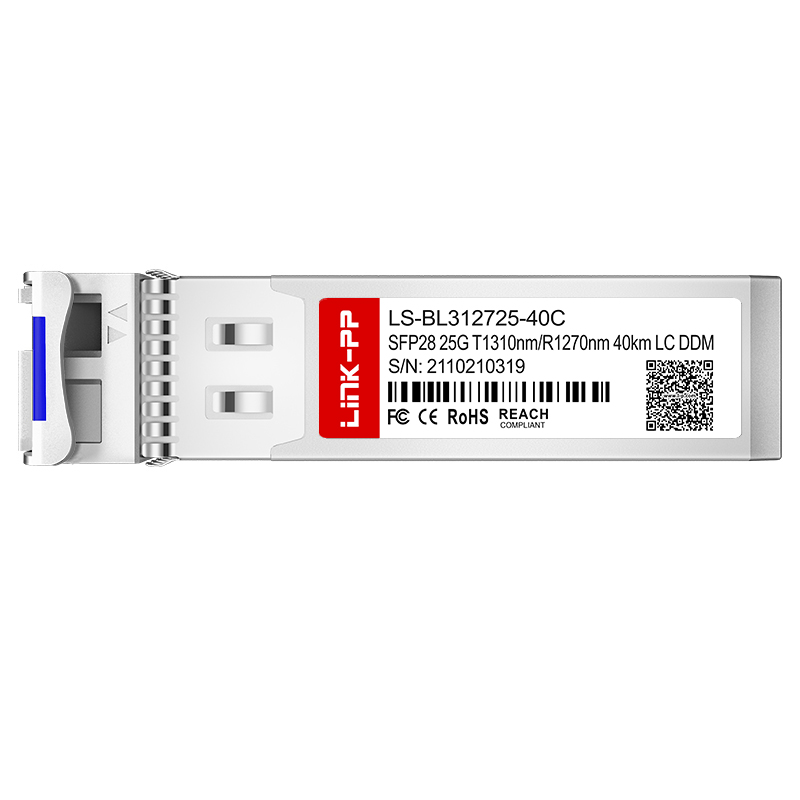

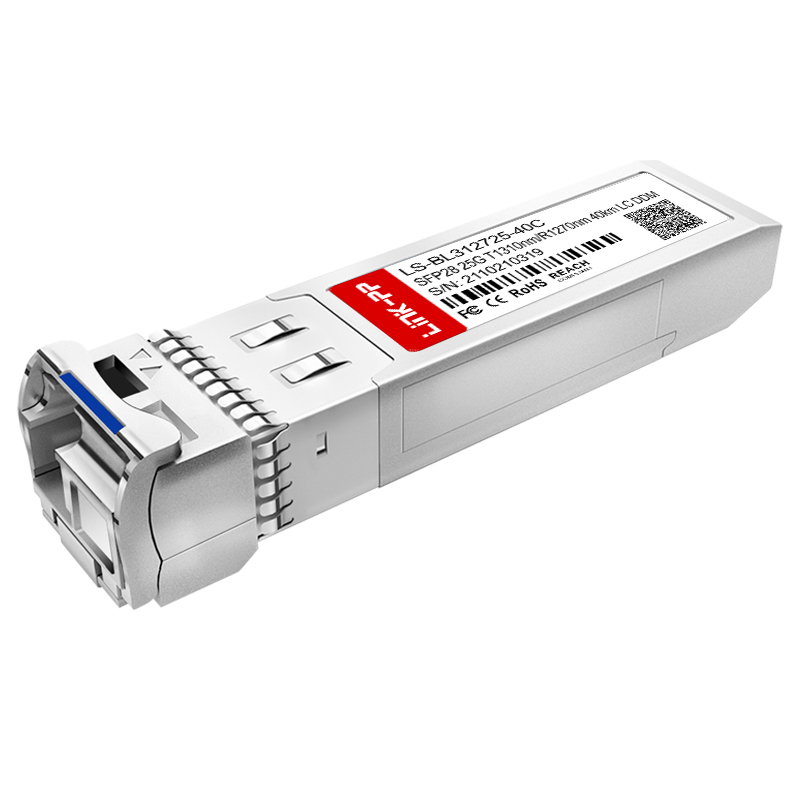

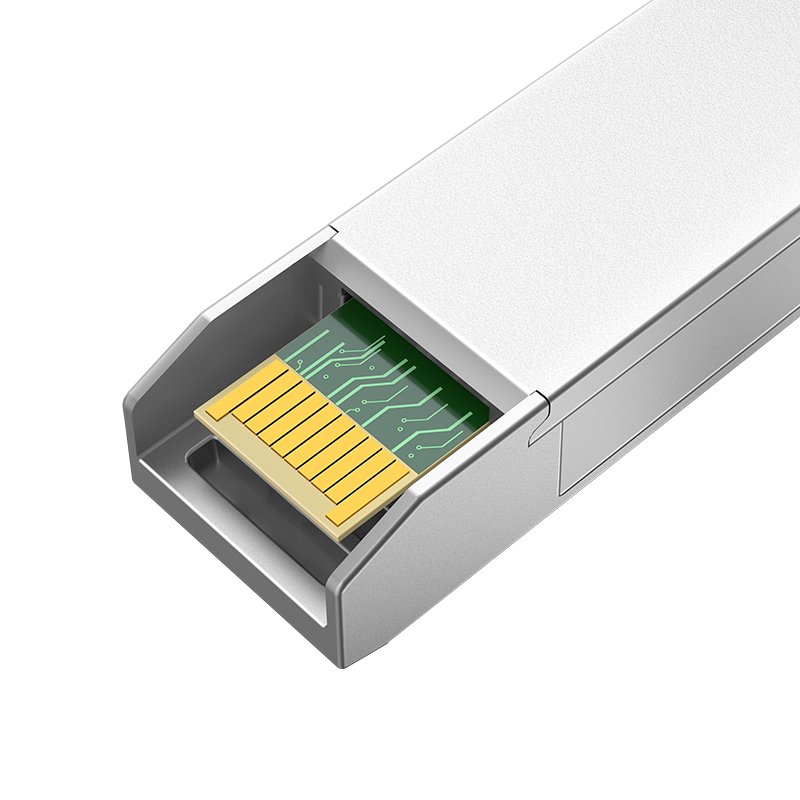

| Item | 25G SFP28 Transceiver |
| Part No. | LS-BL312725-40C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm-TX/1270nm-RX |
| Max Cable Distance | 40km |
| Media | SMF |
| Connector | Simplex LC |
| Optical Component | DFB/APD |
| TX Power | 0~6dBm |
| Receiver Sensitivity | <-18dBm |
| Receiver Overload | 2dBm |
| Power Consumption | 1.2W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | Supported |
| Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time. We provide a full series of optical modules and high-speed interconnection solutions for cloud computing and ultra-broadband networks globally.
