Choosing the right hot swappable transceiver starts with the equipment it must serve. Check the switch or router’s supported module types, port speed, connector, and firmware requirements. Then match the link distance, fiber type, wavelength, and optical budget to the actual route. A 10-kilometer rating will not help if the installed fiber or receiving optics do not fit. Small mismatches can mean unstable links, alarms, or no connection at all.
John Gage, the computer scientist associated with the phrase “The network is the computer,” offers a useful broader reminder: connectivity depends on the whole system. That line is not specific to transceivers, so treat it as context, not a product-selection rule. Compare the module’s specifications with the host device’s compatibility list, and confirm temperature range, power draw, and diagnostic support. Look closely at the DOM readings, too. They can reveal weak optical power before a link fails. A tempting shortcut is choosing the lowest-priced module with matching headline specifications. It can overlook coding, firmware, or warranty differences. Check those details. A datasheet cannot prove every real-world combination will behave well. When possible, verify the module in the exact device and fiber path before wider deployment. The right choice is not simply the fastest or cheapest unit. It is the compatible, supportable option that fits the link you actually need.
A hot-swappable transceiver is a removable optical or copper module that can be replaced while network equipment remains powered. It connects switches, routers, and servers through a compatible electrical interface. This design reduces service interruptions. Technicians can pull the module, inspect the cage, and install another unit without shutting down the entire device. In busy data centers, that difference matters. A 2023 Ethernet Alliance roadmap highlighted the industry’s move toward 800GbE and higher speeds, increasing the need for flexible upgrades. Faster links also create stricter requirements for power, cooling, firmware, and signal integrity.
The right module must match more than transmission speed. Check the port form factor, fiber type, reach, wavelength, connector, temperature range, and power budget. Digital monitoring can reveal temperature, voltage, and optical levels before failure occurs. A hot-swappable design is not automatically risk-free. Dust, static electricity, and poor handling can damage contacts. I have seen installations fail because engineers checked bandwidth but ignored the host’s supported module list. That mistake is easy to repeat.
Tips: Confirm compatibility with the equipment manual and current industry standards. Keep spare modules in sealed packaging. Record serial data and optical readings. Test one module before upgrading many ports. Also, review airflow clearance. A small mistake here can raise rack temperature quickly. The best choice may not be the fastest module. It should be stable, serviceable, and suitable for the real link distance.
Choosing the right hot swappable transceiver starts with your network equipment, not the product label. Check the exact port type, supported speed, and transmission standard in the equipment manual. A module may fit physically but still fail electrically or logically. I have seen this happen during upgrades when a 10G port accepted a module designed for a different interface. It clicked into place. The link stayed dark.
Confirm the required form factor, connector, wavelength, and reach. Match multimode modules with multimode fiber, and single-mode modules with single-mode fiber. Also check whether your switch supports digital optical monitoring, automatic module recognition, or coded compatibility rules. Some equipment rejects third-party modules without a clear error. Review the firmware notes before installation. This step is easy to overlook.
Tips: Record the port speed, cable type, wavelength, and distance before ordering. Compare these details with the equipment’s compatibility list. Check operating temperature when the device sits in a crowded rack. Test one spare module before replacing many units. Hot swapping reduces downtime, but it does not remove risk. Keep the network configuration backed up. Clean the connector ends carefully, even when they look clear. Dust can weaken the signal. I used to treat link failure as a module problem; sometimes the fiber path was the real cause.
| Compatibility Check | What to Verify | Typical Examples | Ready-to-Use Criteria |
|---|---|---|---|
| Port form factor | Match the transceiver’s physical form factor to the equipment port. Similar-looking modules are not necessarily interchangeable. | SFP for many 1 Gb/s ports; SFP+ for many 10 Gb/s ports; SFP28 for many 25 Gb/s ports; QSFP+ for many 40 Gb/s ports; QSFP28 for many 100 Gb/s ports. | The module fits the intended port, and the equipment documentation lists that form factor and port type as supported. |
| Port speed and interface standard | Check the port’s supported data rate, interface standard, and operating mode. A matching connector alone does not guarantee that the link will work. | 10GBASE-SR is a 10 Gb/s multimode-fiber interface; 10GBASE-LR is a 10 Gb/s single-mode-fiber interface. | The module’s rate and interface are supported by the port, and both link endpoints are configured for compatible speeds and modes. |
| Fiber type and reach | Match the optical interface to the installed fiber and the distance between endpoints. Check the fiber grade and link budget where applicable. | 10GBASE-SR typically supports up to 300 m over OM3 or 400 m over OM4 multimode fiber. 10GBASE-LR is designed for up to 10 km over single-mode fiber. | The installed fiber type and link distance fall within the transceiver’s specified operating range at both ends. |
| Wavelength and optical pairing | For fiber links, make sure the transmit and receive wavelengths and the optical interface type form a compatible pair. | 10GBASE-SR commonly uses 850 nm multimode optics; 10GBASE-LR commonly uses 1310 nm single-mode optics. | Both endpoints use compatible optical standards and wavelengths; bidirectional optics, if used, have complementary transmit and receive wavelengths. |
| Connector and fiber path | Confirm the connector type, fiber count, polarity, and any required patch-panel or cabling arrangement. | Duplex LC is common for 10GBASE-SR and 10GBASE-LR. Parallel-fiber interfaces may use MPO connectors and multiple fiber lanes. | The connector and cabling match the module, and the fiber path preserves the required lane mapping and polarity. |
| Host equipment support | Check the switch, router, server adapter, or other host documentation for supported transceiver types and any module-validation requirements. | Some equipment accepts a broad range of standards-compliant modules; other equipment may require specific module coding or approved module types. | The exact equipment model and software or firmware release support the transceiver type. Confirm any module restrictions before purchase. |
| FEC and link settings | For high-speed links, verify forward error correction (FEC), lane configuration, and any required port settings at both ends. | Some 25 Gb/s and higher Ethernet links require a particular FEC mode or compatible settings on both connected ports. | The two endpoints support and use compatible FEC and lane settings, as specified by the equipment and interface documentation. |
| Breakout configuration | If using a breakout cable or fan-out arrangement, check that the port supports the intended lane split and that each far-end port supports the resulting speed. | A supported QSFP port may be configured to split into multiple lower-speed links; breakout support depends on the host port and software. | The host supports the selected breakout mode, and cable type, lane mapping, and far-end port speeds all match. |
| Digital diagnostics | Check whether the equipment can read digital optical monitoring (DOM) or digital diagnostics monitoring (DDM), if monitoring is required. | Diagnostic readings may include module temperature, supply voltage, transmit optical power, and receive optical power. | The host supports diagnostics for the module, and reported measurements are compared with the module’s specified alarm and warning thresholds. |
| Hot-swap procedure | Confirm that the port is designed for hot-plugging and follow the equipment maker’s installation, removal, and safety instructions. | Many network ports support insertion or removal while equipment is powered, but port behavior and precautions vary by device. | The equipment documentation permits hot-swapping for that port. Insert or remove the module as instructed and verify link status afterward. |
Practical check: Verify the host port, transceiver interface, cabling, and far-end port as one complete link. The equipment documentation takes precedence when specifying supported modules, reach, settings, and hot-swap procedures.
Match the transceiver’s data rate to the port and the network protocol. A module that fits physically may still run at the wrong speed. Check the equipment documentation, then confirm whether the port supports the module’s rate and operating mode. Check the port first.
Reach depends on more than the distance between devices. A short link inside a rack may suit a short-reach optic, while a campus connection may need a longer-reach model. Compare the stated reach with your actual cable path, including patch panels and any planned slack. Leave some margin. Optical loss from connectors and splices can reduce the usable distance, so a headline reach is not a guarantee.
Fiber type must match at both ends. Multimode optics require multimode fiber; single-mode optics require single-mode fiber. Also verify connector style, wavelength, and whether the link uses one or two strands. These details are easy to overlook. I would not assume that identical connector shapes mean two modules will work together. Check the transceiver specifications and the equipment’s compatibility guidance before installation, then test the link under normal operating conditions. A little uncertainty is reasonable; real cable routes are rarely as tidy as diagrams.
Choosing a hot-swappable transceiver starts with the port, not the product label. Check the supported form factor, such as SFP or QSFP, and confirm the device accepts that module type. A module may fit physically yet still be unsupported by the switch. Fit is only the start. Compare lane count, connector type, and link speed against the equipment documentation.
Operating conditions matter just as much. A compact module can run warm in a crowded rack, especially when airflow is blocked or nearby ports are active. Check the module’s temperature range and power requirements, then compare them with the actual room conditions. Heat changes the math. A server room that feels cool at the aisle may have warmer air at the rear of a cabinet.
Match the optical interface to the route. For fiber links, verify fiber type, wavelength, connector, and required distance; a short patch between racks differs from a long campus run. Copper modules have their own reach and thermal limits. Leave some margin rather than choosing exactly to a published maximum. In practice, the overlooked detail is often airflow or cable type, not data rate. I would still verify the specific device’s compatibility list before ordering, because identical-looking ports do not guarantee identical support.

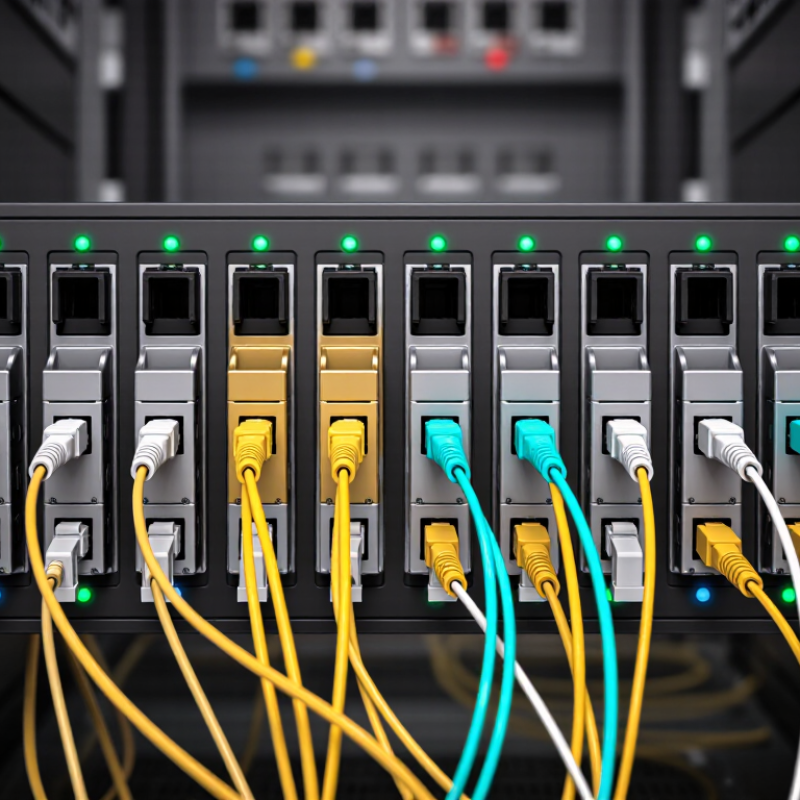

How to Choose the Right Hot Swappable Transceiver?
How to Verify Interoperability Before Installation
Check the transceiver’s speed, wavelength, fiber type, reach, connector, and FEC requirements against the switch documentation. Confirm that both ends support the same Ethernet standard and lane configuration. IEEE 802.3df defines 400GbE and 800GbE; the Ethernet Alliance’s 2024 Ethernet Roadmap also charts 800GbE and 1.6TbE generations. These figures show why matching the port’s exact capabilities matters—not just the module’s label.
Before installation, build a compatibility checklist for the specific switch, software version, and fiber route. Test the transceiver in the intended port, then run traffic while checking link stability, optical power, temperature, and corrected or uncorrected FEC errors. A clean link light is not proof. Test the exact path. Small mismatches matter, and specifications can leave details unclear; verify them with the equipment documentation or supplier.
Tips: Record module identifiers and firmware versions. Clean and inspect connectors before testing. Keep a known-good spare nearby. If error counts rise under load, pause deployment and investigate rather than assuming the link is healthy.
Match its rate and operating mode to the port and network protocol. Check the equipment documentation; physical fit alone is not enough.
Measure the full cable route, including patch panels and planned slack. Allow margin because connectors and splices can reduce usable distance.
Match the fiber at both ends. Multimode optics need multimode fiber, while single-mode optics need single-mode fiber.
Verify wavelength, connector style, strand count, and link speed. Similar-looking connectors do not guarantee compatibility.
Check the supported form factor, lane count, and device compatibility guidance. A module can fit physically but remain unsupported.
Check temperature and power requirements. Blocked airflow and warm air behind a cabinet can make a compact module run hot.
Compare both ends’ Ethernet standard, lane configuration, speed, wavelength, and FEC requirements. Test the module on the intended cable route.
Check link stability, optical power, temperature, and FEC errors while traffic runs. A green link light proves little.
Pause deployment and investigate. Clean and inspect connectors, review the route, and keep a known-good spare nearby.
Not always. Leave some margin; actual cable routes are rarely as tidy as diagrams.
Choosing the right hot swappable transceiver starts with understanding how it supports network upgrades and replacements without shutting down connected equipment. First, confirm that the transceiver matches the port type, interface standards, and management requirements of your network device. Then compare the required data rate, transmission distance, and fiber type to ensure the module can handle your application reliably. Using the wrong combination may lead to poor performance, limited reach, or an unstable connection.
It is also important to evaluate the transceiver’s form factor and operating conditions, including temperature range, power consumption, and installation environment. Before deployment, verify interoperability with the intended switches, routers, and cabling through technical documentation or controlled testing. Checking these details in advance helps reduce compatibility risks, simplify installation, and maintain consistent network performance. A careful selection process ensures that the hot swappable transceiver fits both current requirements and future expansion plans.
